1080P
The ValueCam VT-CA101P is coming with high quality COMS image sensor for up to 1920×1080 resolution at 30fps.
3X & 10X
3X and 10X optical zoom for the option to present clear pictures and excellent results.
PTZ
High quality PTZ ensures that camera movement is smooth, quiet, and precise and allows pan/tilt wide angle. The camera stores up to 255 presets.
USB
USB plug-and-play for easy connectivity with PC, and compatibility with all conferencing applications.

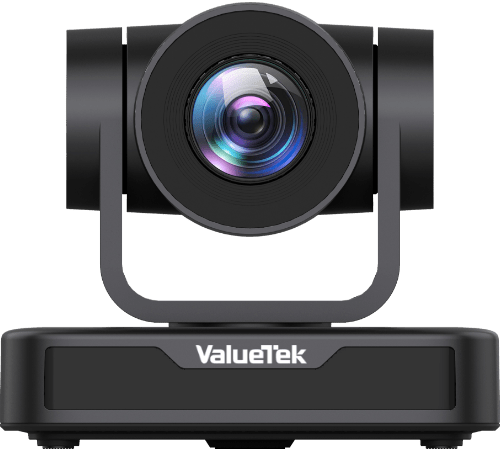

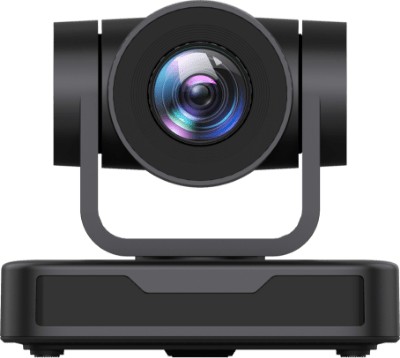

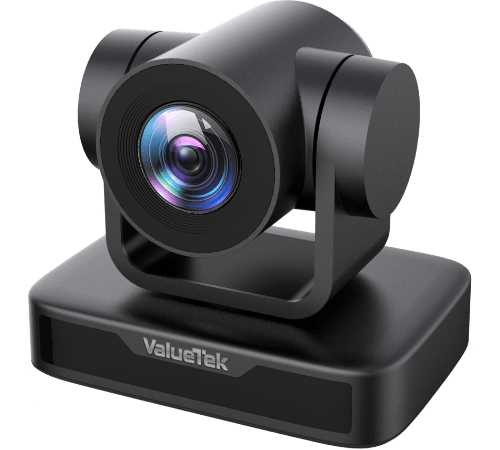

ValueCam VT-CA101P
1080P Optical Zoom PTZ Camera
Excellent Cost Performance Optical Zoom PTZ Camera
With a competitive price, the VT-CA101P PTZ camera offers perfect functions, superior performance, and rich interfaces for you to set up an idea video conferencing, business, education, and working from home without budget concerns. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. Technical improvements accent the camera’s brilliantly sharp image resolution, outstanding color reproduction, and exceptional optical accuracy. At half the price of comparable models, VT-CA101P is the smart choice.
VALUECAM
VT-CA101P
1080P PTZ CAMERA

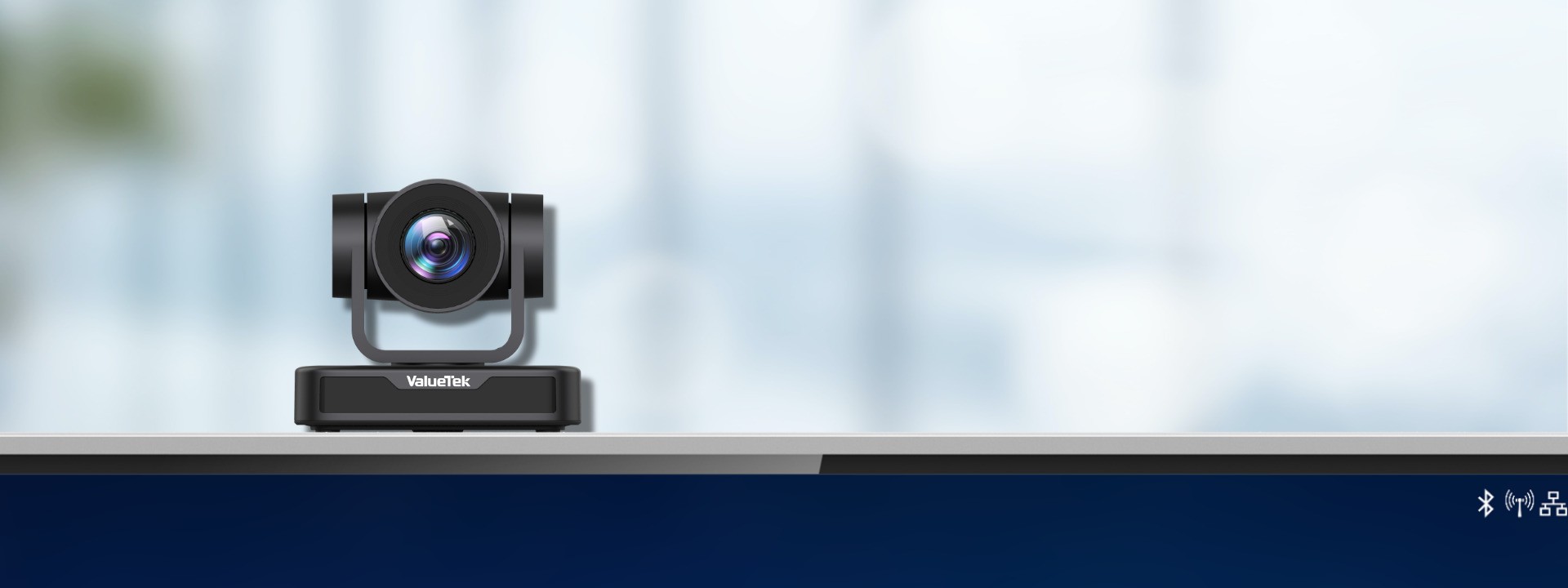

The Elegance of Simplicity
A sleek, contemporary, user-centric design. VT-CA101P effortlessly integrates into any space.

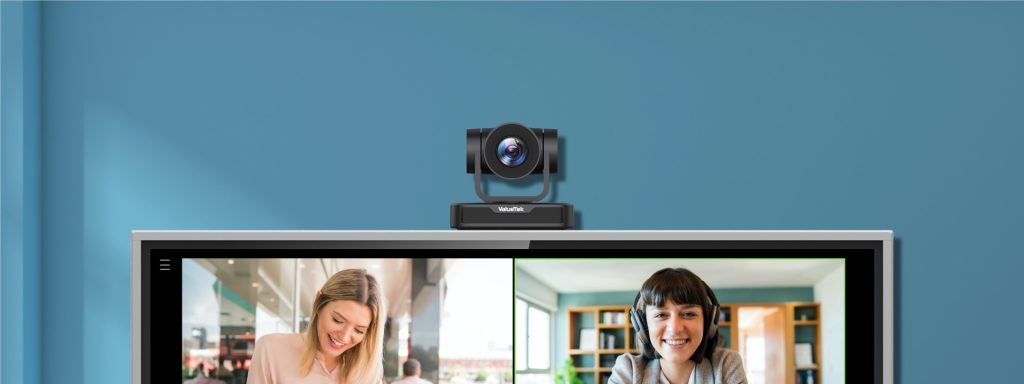

Easy to Set Up and Use
Provide USB 2.0 for easy connectivity. The plug-and-play connection allows you to set up easily. Just start your video meeting anytime.

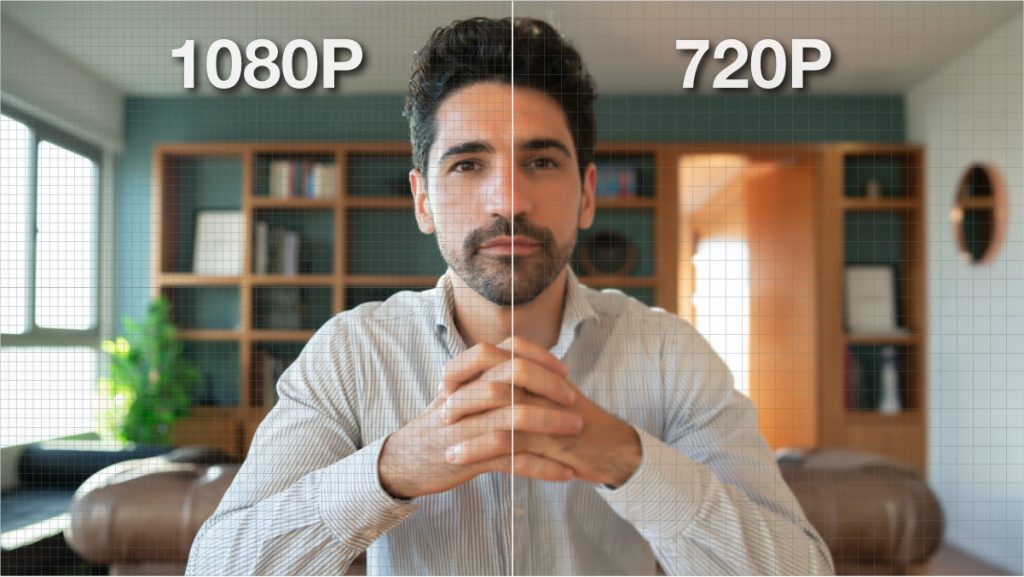

1080P HD Resolution
Communicate and be seen more clearly
The ValueCam VT-CA101P allows everyone to see and understand the presenter, whiteboard, flipchart, or other in-room objects — and feel more like they’re together in the same room, delivering high-quality video conferences.

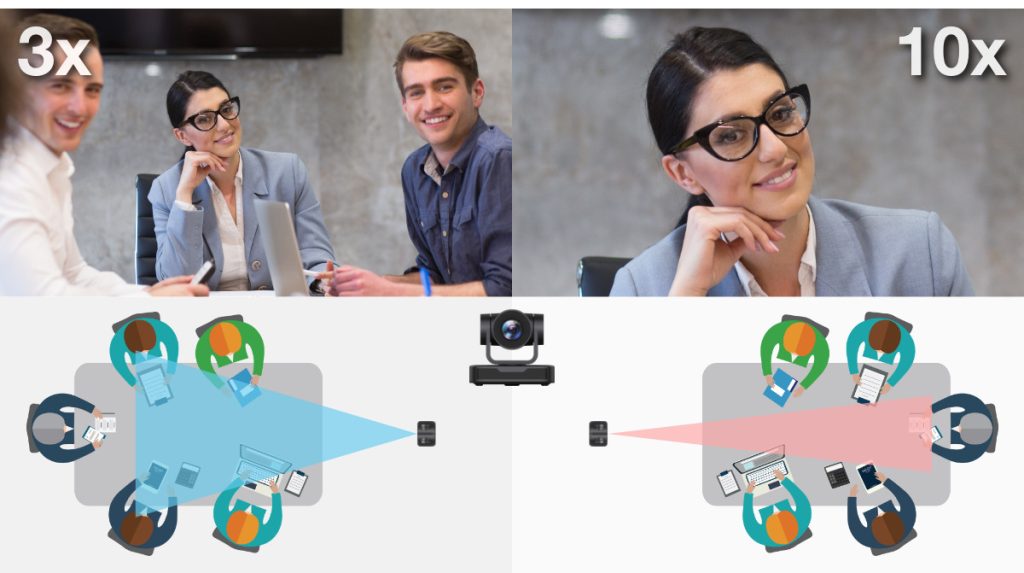

Image Lossless with Optical Zoom
Make sure your excellence gets the attention you deserve
ValueCam VT-CA101P delivers premium optics and life-like video to create the experience of sitting together in the same room, even if you are a thousand miles away. Technical improvements accent the camera’s brilliantly sharp image resolution, outstanding color reproduction, and exceptional optical accuracy. The image and video won’t lose or damage even if you zoom in.
1/2.9 Inch 2.07 Mega Pixel COMS Sensor
Maximum output 1080P image , 3X/10X optical zoom
USB Interface for Simple Connectivity
Free driver, plug-and-play
USB plug-and-play connectivity makes ValueCam VT-CA101P a breeze to deploy and use. Simply connect VT-CA101P to the conference room computer or your laptop through USB and other ports. No need for any driver and software, and you’re good to go. Designed for compatibility with video conferencing applications on Windows® and Mac computers, VT-CA101P complements any audio system or speakerphone.
USB 2.0 connection to match ValueHub
perfectly, plug and play.
It gets up and run fast, no need any driver or software, with various interfaces.
Built-in High Quality and Whisper-Quiet PTZ
Wider angle, wider vision

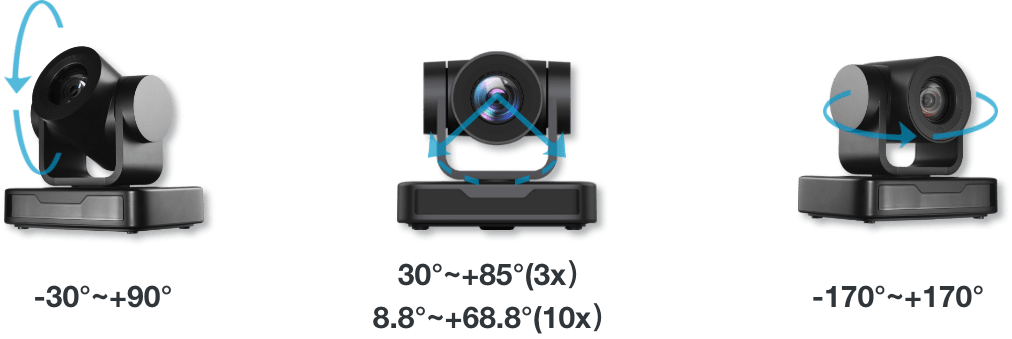

Adopting step driving motor mechanism and motor drive controller with high precision to ensure PTZ works smoothly with low speed and without noise, smooth and precise. VT-CA101P is allowed to pan -170° to +170° and tilt from -30° to +90°.
Up to 255 presets (10 presets for IR remote control), VT-CA101P can preset the shooting angle and position so that camera can quickly capture a certain target. Choose the right angle for you and get a pleasant video conference.
Support to Build Cloud Video Conferencing with ValueLink
More than 1,000,000+ users in 1,000+ cities in 100+ countries use ValueLink for smart video conferencing every day.
Compatible with Multiple Conference Platforms
Support：
Skype | Zoom | Microsoft Team | Welink
Webex | QQ | WeChat | Mindlinker
GoogleClass | ValueLink…
1. Leading Auto Focus Technology：
The advanced and leading algorithm enables the camera to autofocus fast and accurately.
2. Multiple Control Protocols：
Support VISCA, PELCO-D, and PELCO-P protocols; Support automatic identification protocols.

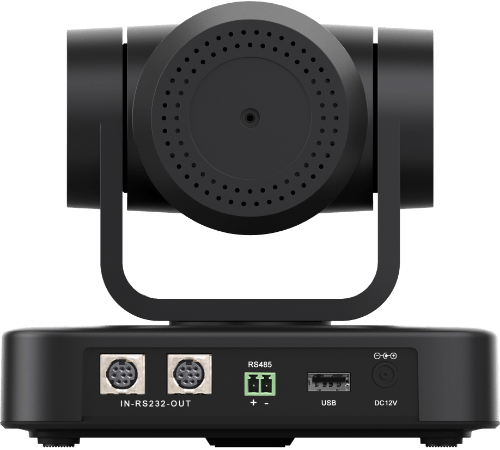

3. Control Interfaces:
RS485, RS232 in & out, support cascade connection.
4. Low-Power Sleep Function:
Support low-power sleep/wake-up; the consumption is lower than 400mW under sleep mode.
5. Multiple Applications：
Online Education, Lecture Capture, Broadcasting, Video Conferencing, Telemedicine, Unified Communication, Emergency Command, Control Systems, etc..
Application Scenarios
ValueTek’s products and solutions can be used for various environments such as Smart Education, Business Meeting, Intelligent Retail, Media Advertising, Smart Governmental Services and other industries.
Transform how you do business
Create flexible, dynamic workspaces that let team members contribute from any location or device – leading to faster results.
Center of every learning environment
Create dynamic interactive environments for classroom that engage students and empower teachers.
Recommended Products
ValueTek related products are recommended for better experience.
| ValueCam Specification | |||
| Image |
|
||
| Model | VT-CA101P-3X | VT-CA101P-10X | |
| Camera Parameter | Sensor | 1/2.9 inch high quality CMOS sensor | |
| Effective pixels | 16: 9, 2.07MP | ||
| Video format |
1920×1080P@30 fps/25fps；1280×720P@30fps/25fps；1024×576P@30fps/25fps；
960×540P@30fps/25fps；800×448P@30fps/25fps；640×360P@30fps/25fps；
320×176P@30fps/25fps,etc.
|
||
| View angle | 30°～85° | 8.8°～ 68.8° | |
| Focal length | f=3.35mm～10.05mm | f=4.34mm～41.66mm | |
| Minimum illumination | 0.05Lux(F1.8, AGC ON) | ||
| Optical zoom: | 3X | 10X | |
| Focus | Auto / Manual/ One Push | ||
| Aperture | F1.7～3.0 | F1.85 – F2.43 | |
| Back light compensation | On/OFF | ||
| Exposure | Auto / Manual | ||
| Image adjustment | Brightness, Color, Saturation, Contrast, White balance mode, Gain, Anti-flicker, Low brightness compensation etc | ||

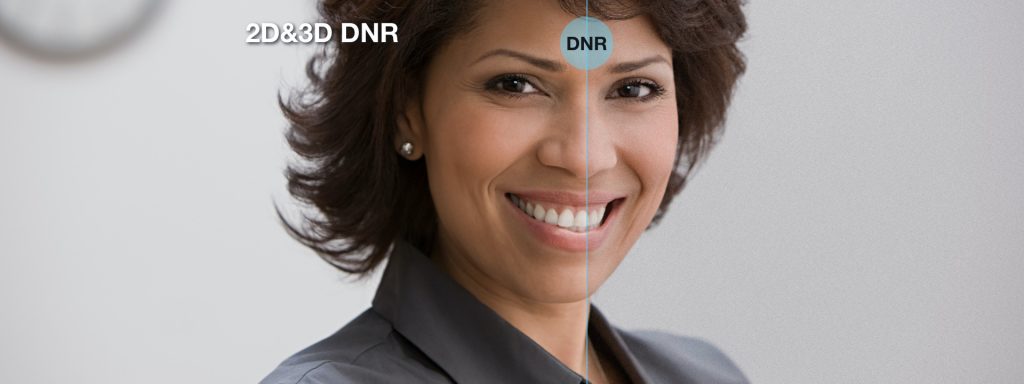

| DNR | 2D &3D DNR (≥50dB ) | ||
| White balance: | Auto/Manual/One-button white balance/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K | ||
| SNR | >50dB | ||
| Input/Output Interface | Video compression format | H.265, H.264, MJPG | |
| Video interfaces | USB2.0. Type A | ||
| Control interface | RS232 in & out, RS485 | ||
| Control protocol | VISCA/Pelco-D/Pelco-P | ||
| Power interface | HEC3800 power socket (DC12V) | ||
| Power adapter | Input AC110V~AC220V; output DC12V/2.5A | ||
| PTZ Parameter | Pan rotation | -170°～+170° | |
| Tilt rotation | -30°～+90° | ||
| Pan control speed | 0.1 ～60°/sec | ||
| Tilt control speed | 0.1～30°/sec | ||
| Preset speed | Pan: 60°/sec, Tilt: 30°/sec | ||
| Preset number | 255 presets (10 presets via remote control) | ||
| Other | Working voltage | 12V | |
| Working current | 0.25A(max) | ||
| Power consumption | 2.5W(max) | ||
| Stored temperature | -10℃～+60℃ | ||
| Storage humidity | 20%～95% | ||
| Working temperature | -10℃～+50℃ | ||
| Working humidity | 20%～80% | ||
| Dimensions | 156.8mm×112.6mm×139.5mm | ||
| Weight | 1.0kg | ||
| Usage environment | Indoor | ||
| Accessory | Power adapter, remote control, manual, warranty card, USB2.0 cable, packing list | ||
| Optional accessory | Mounting brackets | ||

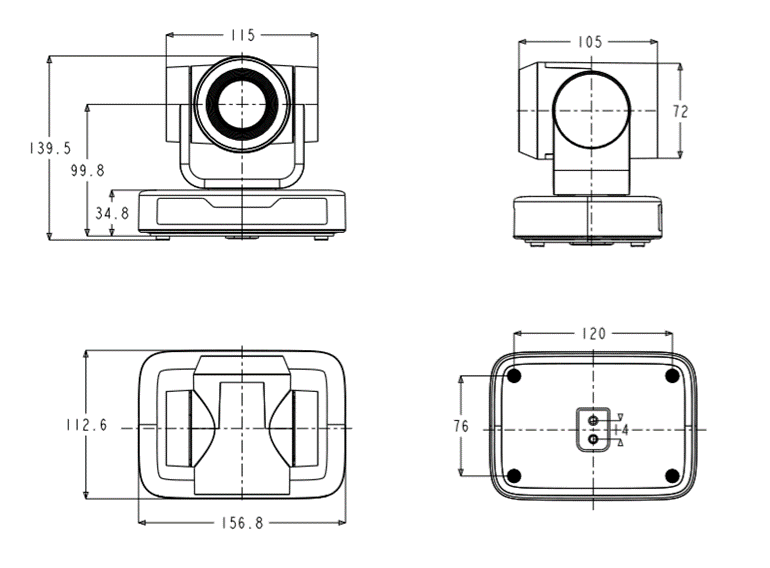

| Drawing |
|
||
