Multi-Touch
10-20 points multi-touch makes it easy for multi-users to work together at the same time.
Plug-and-Play
HID plug-and-play, free driver, easy to use.
Fast Response
Responsive performance across the entire display area at your fingertips.
Various Sizes
Full range of sizes of IR Touch Frame to meet different demands in different applications.
ValueSTek IR Touch Frame for Every Application
Make interaction happen

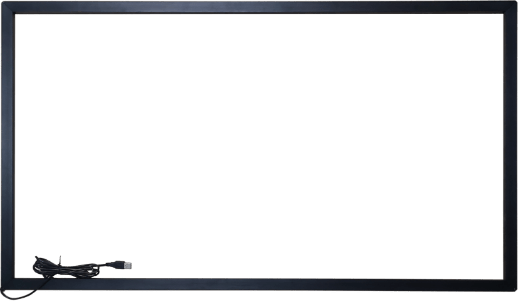

The infrared (IR) Touch Frame is designed to retrofit existing non-touch displays. ValueSTek unique IR interactive touch frames offer a true multi-touch experience transforming any screen or surface into an interactive display. Whether it’s a new touch display installation, or retrofitting touch to an interactive screen, video wall, or table, an interactive touch overlay is a perfect choice, wide application in Retail, Hospitality, Education, Showrooms, Corporate, Offices, Exhibitions, Digital Signage, etc.
ValueSTek IR touch frame technologies transformed the interactive market forever, from large-scale custom multi-touch frames to standard sizes to make any TV a Touch TV.
Brand New A4-64-bit CPU
New CPU, new touch experience
At the core of every ValueSTek IR touch frame is the α4 Processor, a groundbreaking chip that is 24% up on performance than the last generation, shorter response time, and is more responsive.
20 Points Touch
Responsive, accurate multi-touch performance
Audience engagement is right at your fingertips. Customers can’t keep their hands off these big, beautiful screens: 20 multi-touch points ensure accurate, responsive performance across the entire display area.
IP65 Water-Proof and Dust-Proof
Wider application
The frame is designed with IP65 anti-dust and waterproof, more lifetime available, and wider application.
IR Touch Frames-Standard USB Interface
HID plug-and-play, supports various operating system
Powered by a direct USB connection, the free drive supports various operating systems like Windows7, Windows8, Vista, XP, Mac OS, Linux, Android, etc.
Assembly with ease
Four same equilateral ultra-narrow frame designs, easy to assemble with various display devices to make them be interactive devices.
Application Scenarios
ValueSTek’s products and solutions can be used for various environments such as Smart Education, Business Meeting, Intelligent Retail, Media Advertising, Smart Governmental Services and other industries.
Transform how you do business
Create flexible, dynamic workspaces that let team members contribute from any location or device – leading to faster results.
Center of every learning environment
Create dynamic interactive environments for classroom that engage students and empower teachers.
Recommended Products
ValueSTek related products are recommended for better experience.
| ValueTek IR Touch Frame Specification | ||||||||
| Picture |
|
|||||||
| Specification | Size | 15”- 98” (support customization up to >100″) | ||||||
| Frame size | Width 23.5mm, thickness:9.4mm (without glass) | |||||||
| Touch point | 10, 20, 24, 32 | |||||||
| Minimum touch diameter | 5mm | |||||||
| Touch strength | No pressing, just touching the surface of the screen | |||||||
| Touch time | NR | |||||||
| Resolution | 32768*32768 | |||||||
| Free drive | Free drive up to 40 touch points | |||||||
| Positioning accuracy | ±1mm | |||||||
| Error-tolerant rate | It still can work even 75% of sensor damaged | |||||||
| Frame rate | Up to 450 | |||||||
| Response speed | 3-10ms | |||||||
| Light transmittance | 100% without glass | |||||||
| Operating system | Windows®7, Windows®8, Vista, XP, Mac® OS, Linux, Android | |||||||
| Touch protocols | HID, TUIO, Flash | |||||||
| Warranty | 1 year | |||||||
| Power Supply | Power supply | USB power supply | ||||||
| Ultra-low power consumption | Working consumption ≤2W, Standby consumption ≤ 250mW,Per EN61000-4-21995; Level 4. | |||||||
| ESD | Release 8kV to the ground through USB connection pin, release to air 15kV | |||||||
| Operating Environment | Temperature |
Operating temperature: -20°C~70°C Storage temperature: -40°C~85°C |
||||||
| Humidity |
Operating humidity : 10%~90%RH(unclotted) Storage humidity: 10%~90%RH(unclotted) |
|||||||
| Certificate | FCC,CE,RoHS,EMC | |||||||
Professional and Perfect Service from ValueTek
How to produce high quality interactive display in ValueTek factory? Click here!
The warranty does not cover:
1. Mechanical or electric damages resulting from incorrect installation, configuration, usage.
2. Damages resulting from activities inconsistent with the operation manual or contradictory to technical specifications attached to the device.
3. Damages due to the user’s fault or lack of knowledge.
FAQ
Q: Are you factory or trading company?
A: We are a OEM/ODM factory. ValueTek is one of the biggest manufacturers of intelligent display
Q: Can I get some samples?
A: Sample order is welcome. Price would be negotiated based on bigger quantity.
Q: Is it possible to have my logo on the products?
A: Yes. Please send your logo files to us first. Then we will offer you a solution. But we have MOQ for logo customized, MOQ depends on different products.
Q:What payment methods do your company accept?
A: We accept most of the payment methods, but mainly accept T/T, Western Union.
Q: Can you help me to customize my own products?
A: Sure. We have strong ability to customize your products. Please send us the details requirements, then our team will provide you a suitable solution soon.
Q: What is the warranty for your products?
A: Our standard warranty is 1 year. But customers can choose to extend warranty to 2 years or 3 years.
Q: What brand of screen are you using?
A: We are using A+ level full new original LCD panel from Samsung, LG, AUO and BOE.
Q: When will you make the delivery?
A: We can make the delivery within 5-25 working days according to different models and quantities of your order.
Q: What is your after-sale service?
A: Within the warranty, if it is the problem of products quality, non-artificial damage, we will ship new parts to customers for replacement of the broken parts, or customers ship the products back to our factory for repairing.
Q: I bought this LCD display, how to use and install it?
A: The products instructions and user’s manual can be sent to you when you receive the goods. and the video of installing also can help you to know it better. If you have other question, our engineers also can provide you great support online.
