4KUHD
Delivers crystal clarity and brings us a higher-definition visual experience and an immersive environment.
20points
Up to 20 touches can be written or edited simultaneously for simultaneous collaboration. Every vibrant idea will shine freely.
Android&Windows
Coming with Android OS, the T Series provides a slot for an optional slot-in PC to deliver even more powerful computing and an even greater interactive experience with the dual OS.
Sharing
Simultaneously mirror up to 9 devices regardless of the OS for enhanced collaboration.
T Series Interactive Displays
Meet All the Purpose
Featuring 4K UHD resolution and an advanced digital whiteboard, the T Series HD Interactive Displays(also known as an electronic whiteboard or interactive smart board) deliver incredible collaborative capabilities for both classrooms and meeting spaces. With built-in annotation capability, screen mirroring, and up to 20 touch points, versatile connectivity, image & video editing, content creation, and sharing are quick and easy. The OPS slot for an optional slot-in PC delivers even more powerful computing and an even greater interactive experience. Elevate the way and productivity you connect and collaborate.
T series
INTERACTIVE DISPLAY
Aluminum alloy ultra slim bezel for a new stylish and strong design.
4mm tempered glass with anti-glare coating and level 7 of Mohs hardness for super strong impact resistance and surface delivers achievement that even writing for a long time, very safe and durable.
Do more with the T Series Interactive Display’s versatile connection and front buttons options, and provide interactive content visibility, notation, and sharing from a variety of devices with ease.
High-Speed Infrared Multi-Touch
Draw, write, and Inspire new ideas
With ≤2mm of positioning accuracy and 3ms super quick response speed, an accurate and smooth writing experience is delivered using the T Series Interactive Display, which fits naturally in your hand and uses a variety of colors, styles, widths, and modes with the pen. Erase old ideas or edit new ones with the touch of a finger or swipe of your palm.
Natural Writing Technology
With special writing technology, T Series Interactive Display gives you a smooth, natural pen-to-paper-like writing experience.
—Super fast response speed
—Special treatments on the writing surface
—Annotate anywhere anytime

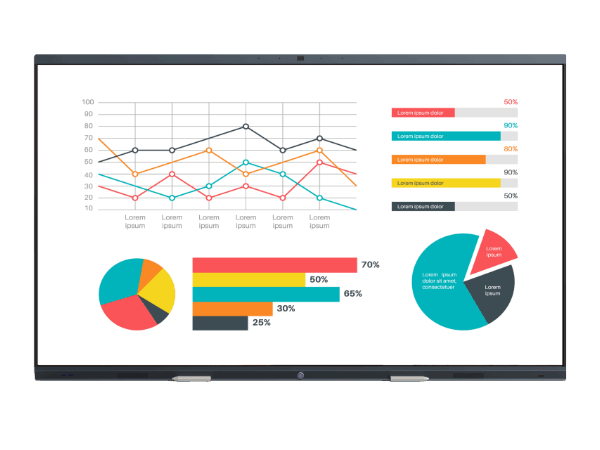

4K Ultra HD Resolution
4K UHD resolution delivers clarity and breathtaking visuals for realism
T Series Interactive Display 4K Ultra HD 3840 x 2160 display ensures clarity and delivers breathtaking visuals. Every presentation, every image, and every video you share will be reproduced clearly and accurately.
Wireless Screen Mirroring
Seamless sharing to deliver content in new ways
Traditional cables are rendered unnecessary during presentations. T Series Interactive Display delivers a wireless connection between the panel and personal devices like laptops, phones, and tablet computers. Moreover, T Series Interactive Display also allows up to four participants to share their content simultaneously. Whether from ValueShare or via the share application, presenting to the panel is effortless and trouble-free.
Powerful Hardware
Built-in high performance Android processor and 16GB of ROM at least
Power faster device interactions with less load time with big storage capacity (ROM) to download and save more interactive content while enjoying consistent, reliable performance.
Smart Eye-Protected Solution
Protect eyes protect future
Parents and teachers worry about children’s eyes a lot nowadays with the electronic environment around them. For an eye-protected, smooth, and comfortable viewing experience, T Series Interactive Display has the technology to reach Low Flicker, Low Blue Light, and Anti-Glare features on the screen.
So Easy to Manage Devices Remotely with DMS
1. Monitor and analyze the status of devices
2. Turn On/Off remotely
3. Broadcasts
4. Remotely access connect on devices from anywhere
Compatible with Various Applications
Unlock unlimited possibilities with an open platform
Different demands on applications can be satisfied by installing various applications from the marketplace.
1. Screen-Lock
The graphic or digital lock can be set to lock the screen to prevent students from misoperation and protect important information of the courseware.
2. Powerful Teaching Tools at Your Fingertips
Abundant teaching tools come with our education software to make teaching and learning more easier. Create and deliver rich, interactive lessons.
3. Super Thin Design with Safe Handles
All in a sleek design with a thin frame of only 20mm for the top, left, and right sides, and with safe handles on each side for easy carry and installation.
4. Built-In All-Channel Annotation Software
All-channel annotation allows teachers to annotate more freely even with only the Android system. Sign in anywhere.
5. Shape Recognition
The multi-touch technology tracks touch intuitively and accurately. It recognizes touch size and the shape of pens, fingers, augmented reality tools, and other solid objects.
Application Scenarios
ValueSTek’s products and solutions can be used for various environments such as Smart Education, Business Meeting, Intelligent Retail, Media Advertising, Smart Governmental Services and other industries.
Transform how you do business
Create flexible, dynamic workspaces that let team members contribute from any location or device – leading to faster results.
Center of every learning environment
Create dynamic interactive environments for classroom that engage students and empower teachers.

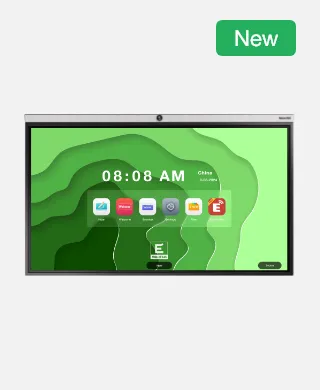

Recommended Products
ValueSTek related products are recommended for better experience.
| T Series Interative Display Specification | |||||
| Image |
|
||||
| Model | VT-PD65T | VT-PD75T | VT-PD86T | ||
| Overall | Frame color | Iron gray | |||
| Material | Aluminium metllicum (front)+metal (back) | ||||
| Feature | Narrow bezel, more natural touch feeling, 2 handles | ||||
| Display | Diagonal size | 65 inch | 75 inch | 86 inch | |
| Effective display area | 1428.48mm(H)×803.52mm(V) | 1649.66mm(H)×927.936mm(V) | 1895.04mm(H)×1065.96mm(V) | ||
| Contrast ratio | 1200:1 | 1200:1 | 1200:1 | ||
| Aspect ratio | 16:9 | ||||
| Brightness | 350cd/㎡ | ||||
| Backlight | DLED | ||||
| Viewing angle | 178°(V)/178°(H) | ||||
| Refresh rate | 60 Hz | ||||
| Resolution | 3840（H) X 2160(V) | ||||
| Display color | 10 bits/1.07 Billion | ||||
| Response time | ≤ 8 ms | ||||
| Glass | Fully heat-tempered anti-glare glass that resists smudges and fingerprint | ||||
| Glass thickness | 4 mm | ||||

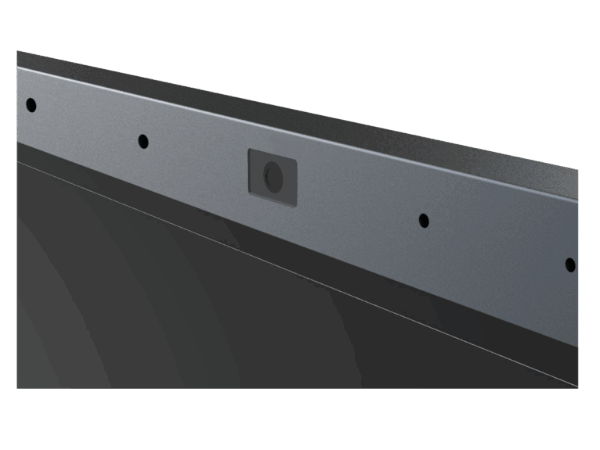

| Webcam | Pixel | 8MP | |||
| Output video format | 2592*1944, 1920*1080, 1280*720 | ||||
| Microphone | Microphones | 6 array microphones | |||
| Pickup distance | 10 meters | ||||
| Features | Echo Cancellation/Beamforming/Environmental Noise Suppression/Sound Source Localization | ||||
| Built-in Android experience | CPU/GPU | Cortex A73*2 A53*2 1.5GHz | |||
| Version | Android 8.0 | ||||
| CPU processor | Quad-Core | ||||
| RAM+ ROM | 4GB + 32GB；4GB + 64GB | ||||
| Compatible video format | MPEG-2/4,AVS,H.264,H.265,TS,Realmedia… | ||||
| Compatible audio format | MPEG1/2 layer I/II,AAC-Lc,WMA… | ||||
| Compatible image format | JPG、BMP、PNG | ||||
| Front port | USB2.0*2 | ||||
| Input port | RJ45*1，RS232*1，AV IN*1，YPBPR IN*1，VGA IN*1，VGA AUDIO IN*1，MIC IN *1，HDMI IN*2，USB3.0*1，USB2.0*1，Type-C*1 | ||||
| Output port | HDMI OUT*1，EARPHONE*1，RJ45*1，SPDIF*1，Touch USB-B*3 | ||||
| Speaker | 2*8Ω10W | ||||
| Bluetooth | Built-in | ||||
| WiFi | Built-in | ||||
| Interactive experience | Touch technology | Multiple Infrared Scanning technology | |||
| Touch point | 20 Points | ||||
| Response time | ≤ 10 ms | ||||
| Accuracy | 3mm | ||||
| Minimum object size | 1mm | ||||
| Touch screen sensor mode | Finger, writing pen or other non transparent touch sensitive medium | ||||
| Resolution of touch screen | 32768 x 32768 | ||||
| Anti-Interference | 80000 Lux | ||||
| Support system | Android/Win10 | ||||
| Remote control | Yes | ||||
| Touch pen | Yes | ||||
| Storage and operating requirements | Power supply | 100V-240VAC,50/60Hz | |||
| Power consumption | ≦180W | ≤320W | ≤410W | ||
| Standby consumption | ≤0.5W | ≤0.5W | ≤0.5W | ||
| Storage temperature | －20℃ ～ 60℃ | ||||
| Storage humidity | 10%RH ～ 90%RH | ||||
| Working temperature | 0℃ ～ 50℃ | ||||
| Working humidity | 10%RH ～ 90%RH | ||||
| Lifetime | More than 50000 hours | ||||
| Others | Dimension | 1485*91.6*914.3mm | 1707.1*91.8*1039.5mm | 1953.4*92*1178.2mm | |
| Net weight | 49.8KGS | 63.8KGS | 76.4KGS | ||
| Gross weight | 63.8KGS | 83.3KGS | 97.3KGS | ||
| Package size | 1653*235*1037mm | 1873*270*1197mm | 2135*270*1332mm | ||
| VESA mounting | 600（H）x 400（V）mm | 600（H）x 400（V）mm | 700（H）x 400（V）mm | ||
| Bracket | Yes | Yes | Yes | ||
| Power cable | Yes | Yes | Yes | ||
| Certificates | CE, FCC, HoRS | ||||

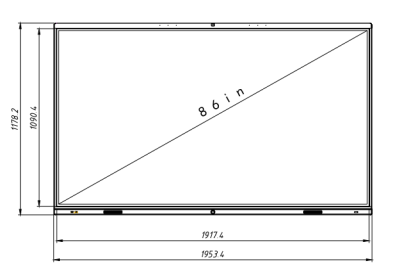

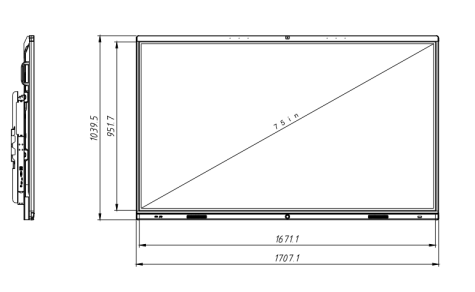

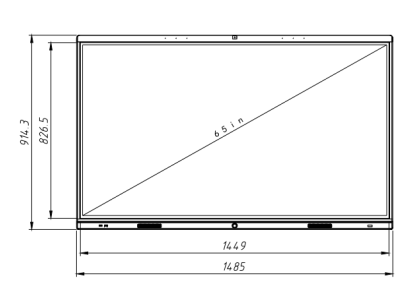

| Dimensions diagram | Front view |
|
|
|
|

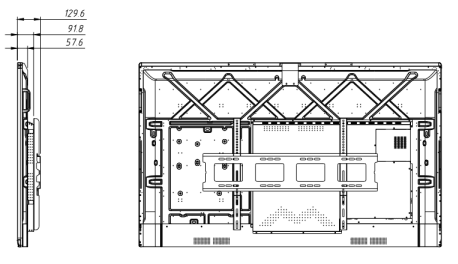

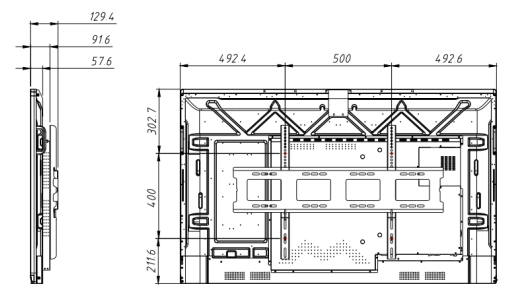

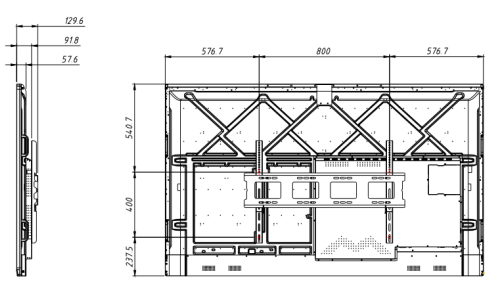

| Back view |
|
|
|
||
